Voltage Source and Current Source

A Source is a gadget which changes over mechanical, compound, warm or some other type of vitality into electrical vitality. As such, the source is a functioning system component implied for producing electrical vitality.

The different sorts of sources accessible in the electrical system are voltage source and flow sources. A voltage source has a compelling capacity of emf while the current source has a constraining capacity of current.

Substance:

👉Voltage Source

👉Current Source

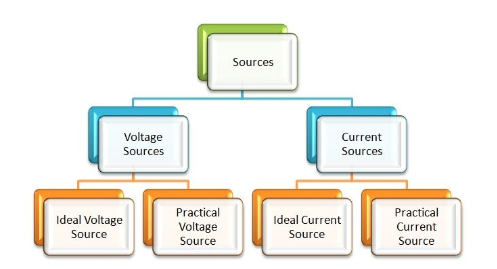

The current and voltage sources are additionally classified as a perfect source or useful source.

Voltage Source

A voltage source is a two-terminal gadget whose voltage at any moment of time is consistent and is autonomous of the current drawn from it. Such a voltage source is called an Ideal Voltage Source and have zero inward opposition.

For all intents and purposes a perfect voltage source can't be acquired.

Sources having some measure of interior protections are known as Practical Voltage Source.due to this inner obstruction; voltage drop happens, and it makes the terminal voltage diminish. The littler is the inner opposition (r) of a voltage source, the more closer it is to an Ideal Source.

The emblematic portrayal of the perfect and viable voltage source is demonstrated as follows.

Figure An appeared beneath shows the circuit chart and qualities of a perfect voltage source:

Figure B appeared beneath gives the circuit chart and attributes of Practical Voltage Source:

The case of voltage sources is batteries and alternators.

Current Source

The current sources are additionally ordered as Ideal and Practical current source.

A perfect current source is a two-terminal circuit component which supplies a similar current to any heap obstruction associated over its terminals. It is imperative to remember that the current provided by the current source is free of the voltage of source terminals. It has vast obstruction.

A reasonable current source is spoken to as a perfect current source associated with the obstruction in equal. The emblematic portrayal is demonstrated as follows:

Figure C demonstrated as follows, show its attributes.

Figure D appeared beneath shows the attributes of Practical Current Source.

The case of flow sources is photoelectric cells, authority flows of semiconductors.
