Capacitor Start Capacitor Run Motor

The Capacitor Run Motor Capacitor Start has a cage rotor, and its stator has two windings known as Main and Auxiliary Windings..The two windings are uprooted 90 degrees in space. There are two capacitors in this technique one is utilized at the hour of the beginning and is known as beginning capacitor. The other one is utilized for ceaseless running of the engine and is known as RUN capacitor.

So this engine is named as Capacitor Start Capacitor Run Motor. This engine is otherwise called Two Value Capacitor Motor. Association graph of the Two valve Capacitor Motor is demonstrated as follows

There are two capacitors in this engine spoke to by CS and CR. At the beginning, the two capacitors are associated in equal. The Capacitor Cs is the Starting capacitor is brief timeframe appraised. It is practically electrolytic. A lot of current id required to get the beginning force. Along these lines, the estimation of the capacitive reactance X ought to be low in the beginning winding. Since, XA = 1/2πfCA, the estimation of the beginning capacitor ought to be huge.

The appraised line current is littler than the beginning current at the typical working state of the engine. Subsequently, the estimation of the capacitive reactance ought to be enormous. Since, XR = 1/2πfCR, the estimation of the run capacitor ought to be little

As the engine arrives at the coordinated speed, the beginning capacitor Cs is separated from the circuit by a radial switch Sc. The capacitor CR is associated forever in the circuit and along these lines it is known as RUN Capacitor. The run capacitor is long time evaluated and is made of oil filled paper.

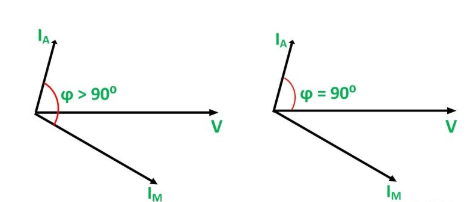

The figure beneath shows the Phasor Diagram of the Capacitor Start Capacitor Run Motor.



Fig(a) shows the phasor chart when at the beginning both the capacitor are in the circuit and ϕ > 90⁰.

 Fig (b) shows the phasor when the beginning capacitor is detached, and ϕ gets equivalent to 90⁰.

The Torque Speed Characteristic of a Two Value Capacitor Motor is demonstrated as follows.

This kind of engine is tranquil and smooth running. They have higher proficiency than the engines that sudden spike in demand for the principle windings as it were. They are utilized for heaps of higher idleness requiring successive beginnings where the most extreme draw out force and proficiency required are higher. The Two Value Capacitor Motors are utilized in siphoning hardware, refrigeration, air blowers, and so forth.
