Active, Reactive and Apparent Power

Active power

Definition: The force which is really devoured or used in an AC Circuit is called True force or Active force or Real force. It is estimated in kilowatt (kW) or MW. It is the genuine results of the electrical framework which runs the electric circuits or burden.

Reactive Power

Definition: The force which streams to and fro that implies it moves in both the bearings in the circuit or responds upon itself, is called Reactive Power. The receptive force is estimated in kilo volt-ampere responsive (kVAR) or MVAR.

Apperent Power

Definition: The result of root mean square (RMS) estimation of voltage and current is known as Apparent Power. This force is estimated in kVA or MVA.

It has been seen that force is expended distinctly in opposition. An unadulterated inductor and an unadulterated capacitor don't expend any force since in a half cycle whatever force is gotten from the source by these segments, a similar force is come back to the source. This force which returns and streams in both the bearing in the circuit, is called Reactive force. This receptive force doesn't play out any valuable work in the circuit.

In an absolutely resistive circuit, the current is in stage with the applied voltage, while in a simply inductive and capacitive circuit the current is 90 degrees out of stage, i.e., if the inductive burden is associated in the circuit the current slacks voltage by 90 degrees and if the capacitive burden is associated the current leads the voltage by 90 degrees.

Thus, from all the above conversation, it is reasoned that the current in stage with the voltage delivers valid or dynamic force, while, the current 90 degrees out of stage with the voltage adds to responsive force in the circuit.

In this way,

• Genuine force = voltage x current in stage with the voltage

• Receptive force = voltage x current out of stage with the voltage

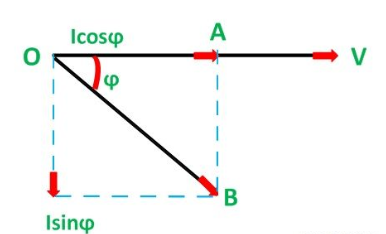

The phasor chart for an inductive circuit is demonstrated as follows:

Accepting voltage V as reference, the current I falls behind the voltage V by a point ϕ. The current I is separated into two parts:

I Cos ϕ in stage with the voltage V

I Sin ϕ which is 90 degrees out of stage with the voltage V

Hence, the accompanying articulation appeared beneath gives the dynamic, receptive and evident force separately.

Dynamic force P = V x I cosϕ = V I cosϕ

Responsive force Pr or Q = V x I sinϕ = V I sinϕ

Obvious force Pa or S = V x I = VI

Dynamic segment of the current

The current segment, which is in stage with the circuit voltage and adds to the dynamic or genuine intensity of the circuit, is called a functioning segment or watt-full part or in-stage segment of the current.

 Receptive segment of the current The current part, which is in quadrature or 90 degrees out of stage to the circuit voltage and adds to the responsive intensity of the circuit, is known as a receptive segment of the current.
